Glue-in Protection Bolts
OutDoor Industry Award for Innovation
Tested to EN959 by TÜV Sud
Twisted Leg or Solid Leg?
We offer bolts in both twisted leg and welded solid leg designs, but which is better?
Strength is not a concern, all of our bolts have breaking strains nearly double that of the other components used when rock climbing.
Twisted leg bolts are cheaper, have less reliance on glue quality, better corrosion resistance and a higher pull out resistance but generally require a larger diameter hole to be drilled.
Solid leg bolts can be placed in smaller holes, saving on drilling time in hard rock and can have thicker material increasing their life if used for lowering and toproping. The lack of any mechanical effect means they are more reliant on good quality gluing, compounded by the reduced hole size giving less glue/rock bond area.
As with all welded products there is an increased risk of corrosion in agressive environments such as near the sea and twisted leg bolts are a better choice.
For general bolting and sea cliffs we recommend the use of twisted leg bolts.
For hard rock areas solid leg bolts reduce drilling time but require higher performance glues such as epoxy acrylate.
Twisted Leg Series
6mm Rod Twisted Leg
Exceptional strength in a compact form with unrivalled pull-out resistance and the lowest visual impact of any bolt on the market. Eye takes karabiner and 11mm rope or two karabiners.
(80, 100 & 150mm lengths shown)
Breaking Strain-40kN
EN959.
AISI 304 (A2) or AISI 316 (A4) Stainless Steel.
12mm dia. hole.
Available from stock in three sizes:-
Order Code Description Price
[GP6-80-12A2] 80mm shaft length (normal rock) €3,45
[GP6-100-12A2] 100mm (soft rock) €3,65
[GP6-150-12A2] 150mm (sandstone) €4,15
[GP6-80-12A4] 80mm shaft length (normal rock) €3,62
[GP6-100-12A4] 100mm (soft rock) €3,83
[GP6-150-12A4] 150mm (sandstone) €4,34
Other lengths to order, price pro rata.
8mm Rod Twisted Leg
Durability, strength, and performance. Stock 16mm diameter shaft at an economical price.
(80 & 100 mm lengths shown)
Breaking Strain-79kN
EN959.
AISI 304 (A2) or AISI 316 (A4) Stainless Steel 16mm dia. hole.
Available from stock in three sizes:-
Order Code Description Price
[GP8-80-16A2] 80mm shaft length (normal rock) €3,95
[GP8-100-16A2] 100mm (soft rock) €4,15
[GP8-150-16)A2 150mm (sandstone) €4,65
[GP8-80-16A4] 80mm shaft length (normal rock) €4,15
[GP8-100-16A4] 100mm (soft rock) €4,36
[GP8-150-16A4] 150mm (sandstone) €4,88
Other lengths to order, price pro rata.
Solid Leg Series

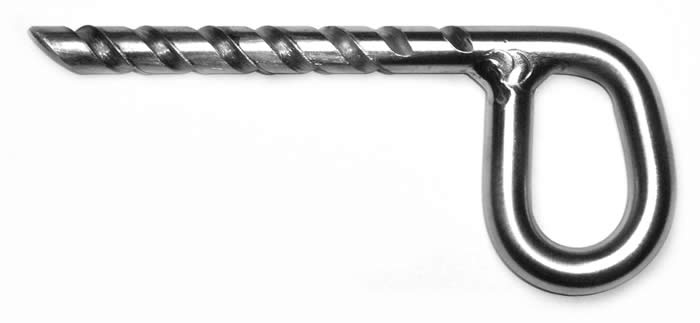

8mm Rod Solid Leg Bolt
For customers wishing to reduce the amount of drilling we produce solid leg bolts with double-start machined glue grooves for exceptional bonding and holding power.
Hand TIG welded these are the strongest bolt you can get into a small diameter hole. Diagonal end to prevent rotation and eliminate the need to recess the bolt eye.
Breaking Strain-35kN
EN959.
AISI 304 (A2) or AISI 316 (A4) Stainless Steel 9mm dia. hole or larger
Available from stock in four sizes and two grades:-
Order Code Description Price
[GPS8-80A2] 80mm shaft length (normal rock) €4,45
[GPS8-1002] 100mm (soft rock) €4,65
[GPS8-120A2) 120mm (sandstone) €4,85
[GPS8-140A2) 140mm (sandstone) €5,05
[GPS8-80A4] 80mm shaft length (normal rock) €4,65
[GPS8-100A4] 100mm (soft rock) €4,85
[GPS8-120A4] 120mm (sandstone) €5,05
[GPS8-140A4] 140mm (sandstone) €5,25
Other lengths to order, price pro rata.
10mm Rod Solid Leg Bolt
The 10mm rod version of the above with more strength and durability as well as greater holding power due to the greater rock bond area.
Breaking Strain-40kN
EN959.
AISI 304 (A2) or AISI 316 (A4) Stainless Steel 11mm dia. hole or larger
Available from stock in four sizes and two grades:-
Order Code Description Price
[GPS10-80A2] 80mm shaft length (normal rock) €4,95
[GPS10-100A2] 100mm (soft rock) €5,15
[GPS10-120A2) 120mm (sandstone) €5,35
[GPS10-140A2) 140mm (sandstone) €5.55
[GPS10-80A4] 80mm shaft length (normal rock) €5,15
[GPS10-100A4] 100mm (soft rock) €5,35
[GPS10-120A4] 120mm (sandstone) €5,55
[GPS10-140A4] 140mm (sandstone) €5,75
Other lengths to order, price pro rata.

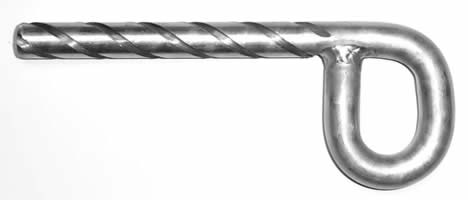

12mm Crux Monster Bolt
Specially developed for crux bolts in soft rock which are repeatedly fallen on. The flexing of normal bolts can cause cracking of the rock below the bolt which is unsightly and worrying even though there is unlikely to be any serious loss of strength. These bolts are naturally much stiffer than normal and this cracking much reduced.
Double start grooves for excellent bonding, TIG welded eye and naturally immensly strong.
Eye internal dimensions 20mm wide x 30mm high.
Breaking Strain-Over 60kN
EN959.
AISI 304 (A2) or AISI 316 (A4) Stainless Steel 12mm dia. hole.
Available from stock in three sizes:-
Order Code Description Price
[GP8-80-16A2] 100mm shaft length (normal rock) €7,50
[GP8-100-16A2] 120mm (soft rock) €7,70
[GP8-150-16A2) 150mm (sandstone) €8,00
[GP8-80-16A4] 100mm shaft length (normal rock) €7,88
[GP8-100-16A4] 120mm (soft rock) €7,08
[GP8-150-16A4] 150mm (sandstone) €8,40
Other lengths to order, price pro rata.
Bolt-In Protection Bolts

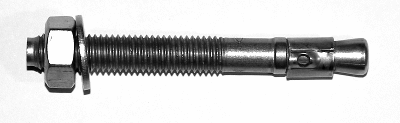

10mm and 12mm Wedge Anchors
These are a high quality product with European Technical Certificate ETA-05/0199 for torque controlled anchors and made from AISI316 (A4) stainless steel.
The best priced quality bolt we can source and batch tested by ourselves to ensure consistant quality.
This type of bolt is generically known as „torque controlled“ and the recommended tightening torque must be adhered too. If you are unable to apply this torque before the bolt starts to extract the rock is probably too soft and it will almost certainly rip out under load. A different anchor design such as an undercut will probably give better results, please contact us for help.
See Bolting Information for more information and tips on mechanical rock anchors.
EN959
ETA-05/0199
AISI 316 (A4) Stainless Steel
M10 X 80mm for hard rock
M10 X 100 mm for belays and softer rock
M10 X 120mm for soft rock
M12 X 100 for heavy use areas and belays.
M12 X 120 for heavy use areas and belays in softer rock.
We can supply other sizes to order.
Order Code Description Breaking Load Price
[BM10-80] M10 X 80mm long Bolt 36kN €2,10
[BM10-100] M10 X 100mm long Bolt 36kN €2,20
[BM10- 120] M10 X 120mm long Bolt 36kN €2,30
[BM12-100] M12 X 100mm long Bolt 52kN €2,70
[BM12- 120] M12 X 120mm long Bolt 52kN €2,80
Extra Long Bolts
We also make up extra-long bolts for fixing loose blocks to the cliff as these are unobtainable elsewhere. These are normally made from 12mm bolts with a 10mm rod diagonally cut and welded in place (the strongest method). We make these up to suit the drilling depth for long-series drills, usually in 300, 400 and 600mm lengths, please contact us for details and price. Others diameters can also be made up to your specification.
Bolt Hangers
The innovation in bolt hangers in the last 30 years!
Designed to adress the two main problems with traditional plate hangers;- visual impact and sharp edges.
Our bent rod hangers are kind on your karabiners, allow threading and lowering off and have a visual impact 60% less than a plate hanger.
The eye design virtually eliminates involuntary unclipping while the rod construction reduces the risk of the karabiner nose catching on the hanger in the unlikely event of it occuring..
Immensly strong rod construction prevents damage to karabiners and slings and allows direct threading of the rope for abseiling.
Manufactured by cold forming and full TIG welded this is the strongest bolt hanger available with the 8mm rod model exceeding 50kN in our tests. We have to use special hardened steel bolts to destruction test these as the normal 10mm A4 stainless bolts fail first!
Available in 6mm and 8mm rod and eyes to suit 10mm or 12mm 1/2". Also available is the 8mm rod belay hanger for 16mm bolts for high-use belays in sandstone.

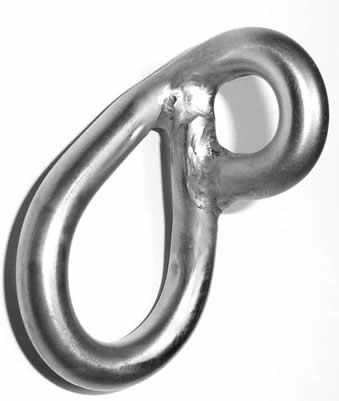

6 and 8mm Rod-10/12mm Bolt Protection Hanger

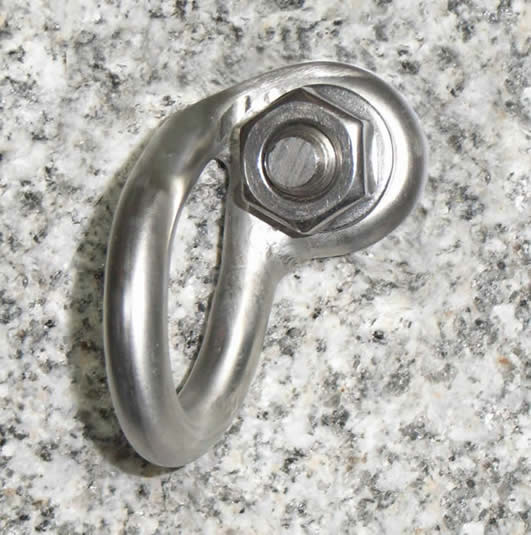

Hanger shown here is the 8mm rod 12mm eye model
Small but incredibly strong, this is our standard protection bolt hanger, double welded and with an eye large enough for two karabiners or karabiner and rope.
Breaking Strain 6mm-30kN, 8mm 45kN
AISI 304 (A2) or AISI 316 (A4) Stainless Steel
EN959
Order Code Description Price
[PH6-10A2] 6mm Rod Protection Hanger for 10mm bolt. €3,95
[PH6-12A2] 6mm Rod Protection Hanger for 12mm bolt. €3,95
[PH8-10A2] 8mm Rod Protection Hanger for 10mm bolt. €4,95
[PH8-12A2] 8mm Rod Protection Hanger for 12mm bolt. €4,95
[PH6-10A4] 6mm Rod Protection Hanger for 10mm bolt. €4.15
[PH6-12A4] 6mm Rod Protection Hanger for 12mm bolt. €4,15
[PH8-10A4] 8mm Rod Protection Hanger for 10mm bolt. €5,20
[PH8-12A4] 8mm Rod Protection Hanger for 12mm bolt. €5,20
See also our BelayHangers
