Sustainable Bolting and Bolt Removal

    Maillons, Shackles,Rings, Chain and Karabiners

For building up belays, abseil stations and lower-offs.

All of these components are tested by us to verify their quality and strength.

Our rings are rolled and welded in-house.

As well as the normal maillons we supply special safety shackles for building chainsets, these are stronger, more economical and less prone to theft.

If you are building lower-off with maillons then you should take measures to prevent theft. A high strength thread locking compound such as Loctite will deter most, even more secure is to fill the threaded barrel with epoxy putty before screwing it up. This is sold in a convenient kneadable form for pipe repairs and similar.
The maillons can then only be removed by cutting or heating with a blowtorch and unscrewing.


Strength and Tests
Bolt Selection
Orders, Delivery and Discounts
Protection Bolts
Belay Bolts
Sea Water Series
Single Point Lower-offs
Chain Extenders
Chain Sets
Stainless Steel Pitons
Maillons, Rings and Chain
Via Ferrata Equipment
Glue and glue guns
Accesories
Service and support
Terms and conditions

sales@bolt-products.com

Stainless Steel Maillons

Stainless steel maillons (quick links) for joining chainsets, lower-offs etc.
Breaking strains given are our test results.
The maximum opening size is given to help you choose the correct model.
For lower-offs we recommend the rope should run through 10mm or better 12mm maillons for longer life and to reduce rope wear but a ring and shackle combination is much better.

AISI 316 (A4) Stainless Steel

Standard

Order Code             Description                                                     Breaking Strain    Length (Int)    Opening        Price
[MSS6]                   6mm Maillon                                                   13,5kN               45mm              7,5mm           €4,30
[MSS8]                   8mm Maillon                                                    27,4kN              58mm              9,5mm           €6,80
[MSS10]                 10 mm Maillon                                                 40kN                 69mm              12mm            €9,20
[MSS12]                 12mm Maillon                                                  50kN                 81mm              14,5mm        €12,50

Long Series

With a larger opening allowing a rope or similar to be installed.

[MSS6L]                   6mm Maillon                                                   13,5kN              70mm               14,5mm        €4,50
[MSS8L]                   8mm Maillon                                                    27,4kN              88mm              17,5mm        €7,00
[MSS10L]                10 mm Maillon                                                  40kN                105mm             20,5mm        €9,40
[MSS12L]                12mm Maillon                                                   50kN                124mm             23,5mm        €12,70

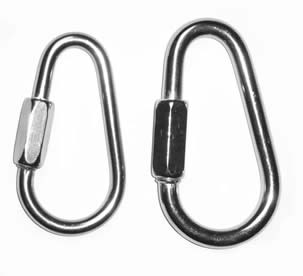

Pear Shaped.

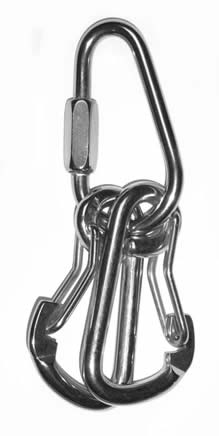

These we stock to allow the installation of two karabiners back-to-back for lower-offs. 8mm and 10mm illustrated.

                                                                                                                                   Internal Width

                                                                                                                                   (large end)

[MSS8P]                   8mm Maillon                                                    33kN                36mm              17mm        €7,00
[MSS10P]                10 mm Maillon                                                  55kN                43mm               20mm        €9,40

Stainless steel forged safety shackles



An economical way of building up chainsets etc with absolute security and cheaper than the equivelant strength maillon and with a larger opening.

These shackles are forged from AISI 316 and fitted with a shouldered bolt and security pin, not the normal weaker threaded pin. The nut is tightened up against the shoulder and the pin fitted, allowing the pin to rotate in use. Breaking loads are from our own tests.

We offer two types, the "Bow" shape and the standard "D" which we can supply up to 22mm pin diameter.

The "Bow " form has larger eye dimensions and therefore fits larger plate hangers better.

Dimensions in mm.

                                                              A          B          C          D

6.4mm x 8mm                                        6,4         8          12         29

8mm x 9,5mm                                        8            9,5       13,5      31

AISI 316 (A4) stainless steel

Order Code             Description                                                     Breaking Strain               Price
[SSS8B]                   6,4 x 8mm Pin Shackle                                     38kN                             €4,00

[SSS10B]                 8mm x 9,5mm Pin Shackle                                62kN                             €6,00



The "D" form has the same opening but a shorter eye and is slightly cheaper.

Dimensions in mm.

                                                              A          B          C          D

6.4mm x 8mm                                        6,4         8          12         22

8mm x 9,5mm                                        8            9,5       13,5      26

AISI 316 (A4) stainless steel

Order Code             Description                                                     Breaking Strain               Price
[SSS8D]                   6,4 x 8mm Pin Shackle                                     38kN                             €3,80

[SSS10D]                 8mm x 9,5mm Pin Shackle                                62kN                             €5,80



Rings

To ensure consistant quality our stainless steel rings are bent and welded by ourselves.

All rings have a nominal internal diameter of 45mm.

These rings are ground smooth on the inside to ensure they do not hang up on the bolt or hanger, preventing rotation or cause wear on the rope.



AISI 304 (A2) or AISI 316(A4) Stainless Steel

Order Code                 Description                                                        Breaking Load (test).               Price
[R8-45A2]                   8mm Ring                                                           over 50kN                               €7,76
[R10-45A2]                10mmRing                                                           over 50kN                               €9,49
[R12-45A2]                12mm Ring                                                          over 50kN                               €11,22

[R8-45A4]                   8mm Ring                                                           over 50kN                               €8.15
[R10-45A4]                10mmRing                                                           over 50kN                               €9,96
[R12-45A4]                12mm Ring                                                          over 50kN                               €11,78

We can manufacture rings to other sizes if required- please ask.

Chain

A high quality stainless steel long link chain to DIN 763.
8mm material with a rated 400kg working load and a rated 2500kg breaking load, Available in any length. 52mm internal link length.
Price per metre or per link (52mm internal length)

On test we get a breaking load of 58,9kN for this chain!

Breaking Load-2500kg.
AISI 316 (A4) Stainless Steel

Order Code             Description                                                       Price
[CH8]                      8mm Stainless Chain                                         €25,73/m
                                Per 52mm link                                                  €1,20/link

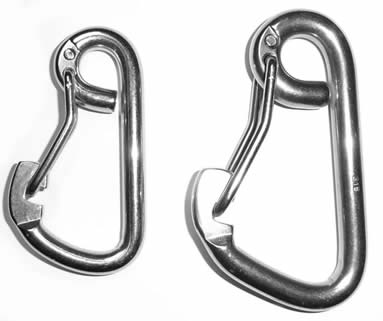

Karabiners

Stainless steel wiregate karabiners with a closed eye and bent gate for building lower-offs and abseil points.

Wiregates are the most robust system and self cleaning for use outdoors, normal karabiners are hanging upside down when used for lower-offs are usually lying against the rock and the spring mechanism tends to fill with water-borne debris - we have seen too many defective screwgates after years on the cliff to recommend them and use instead 2 wiregates back-to-back for safety, for this we recommend you use the pear shaped maillons listed above or two safety shackles.



Breaking Load 10mm-31kN Gate Closed, 11,8kN Gate Open

Breaking Load 12mm-40kN Gate Closed, 14,2kN Gate Open
AISI 316 (A4) Stainless Steel

Order Code             Description                                                       Price
[SSK-10W]            10mm Wiregate Karabiner                                €9,98

[SSK-12W]            12mm Wiregate Karabiner                                €15,00

We can offer good bulk discount on these for orders of over 50!
