| Sustainable Bolting and Bolt Removal | Belay Bolts While the loading on protection bolts will usually be limited by rope stretch and a lower fall factor this is often not so for belays, in particular on multi-pitch routes. Our preference is for "bombproof" belays with two bolts, each easily capable of withstanding any load a climber can put on them. Bolt Products belay bolts have larger eyes to make clipping multiple karabiners more convenient and to allow the rope to be easily doubled through. We produce a variety of enormously strong belay bolts, both glue-in and bolt-in to suit most applications especially when combined with one of our lower-off range. We recommend always fitting two bolts at a lower-off or belay. |
| Strength and Tests | |
| Bolt Selection | |
| Orders, Delivery and Discounts | |
| Protection Bolts | |
| Belay Bolts | |
| Sea Water Series | |
| Single Point Lower-offs | |
| Chain Extenders | |
| Chain Sets | |
| Stainless Steel Pitons | |
| Maillons, Rings and Chain | |
| Via Ferrata Equipment | |
| Glue and glue guns | |
| Accesories | |
| Service and support | |
| Terms and conditions |
Glue-in Belay Bolts
.
6mm Rod Twisted Leg Large Eye.
Standard lower-off or belay bolt with 35mm I/D dropped eye. Strong, simple and ideal for most routes. Large eye allows for multiple carabiners and doubled threading the rope.
(Not suitable for regular use as toprope anchor unless fitted with maillons).
Breaking Strain-40kN
EN959
6mm AISI 304 (A2) or AISI 316 (A4) Stainless Steel
12mm dia. hole
Order Code Description Price
[6-80-12LEA2] 80mm shaft length (normal rock) €3,95
[6-100-12LEA2] 100mm (soft rock) €4,15
[6-150-12LEA2] 150mm (sandstone) €4,65
[6-80-12LEA4] 80mm shaft length (normal rock) €4,15
[6-100-12LEA4] 100mm (soft rock) €4,38
[6-150-12LEA4] 150mm (sandstone) €4,88

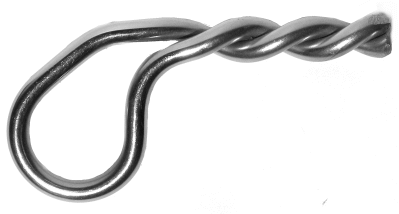

8mm Rod Twisted Leg Large Eye.
The more robust variant than above and even higher strength.
Breaking Strain-76kN
EN959
8mm AISI 304 (A2) or AISI 316 (A4) Stainless Steel
16mm dia. hole.
Order Code Description Price
[8-80-16LEA2] 80mm shaft length (normal rock) €4,95
[8-100-16LEA2] 100mm (soft rock) €5,15
[8-150-16LEA2] 150mm (sandstone) €5,65
[8-80-16LEA4] 80mm shaft length (normal rock) €5,19
[8-100-16LEA4] 100mm (soft rock) €5,41
[8-150-16LEA4] 150mm (sandstone) €5,93
12mm Rod Monster Belay Bolt
A simple, massive 12mm eye bolt for years of reliable belaying, abseiling or lowering-off. Extra large 60mm eye for plenty of karabiners and easy threading the rope. Our machined triple start grooves give enormous pull-out resistance in excess of 60kN but still allows removal at a later date.
Breaking Strain-over 60kN
EN959
.AISI 304 (A2) or AISI316 (A4) Stainless Steel
12mm dia. Hole.
Order Code Description Price
[12-100A2] 100mm (normal rock) €8,50
[12-120A2] 120mm (soft rock) €8,70,
[12-150A2] 150mm (sandstone) €9,00
[12-100A4] 100mm (normal rock) €9,35
[12-120A4] 120mm (soft rock) €9,57
[12-150A4] 150mm (sandstone) €9,90
Bolt-In Belay Hangers
6mm/ Rod Belay Hanger for 10/12mm bolts
The larger eye version of our rod protection hanger for use at belays. Also suitable for use as a lower-off in medium use areas.
Immensly strong rod construction prevents damage to karabiners and slings and allows direct threading of the rope for abseiling.
Double welded for safety.
Eye takes multiple karabiners and allows for easy doubled threading of the rope.
Two sizes for 10 or 12mm bolts.
Nominal eye diameter 40mm
Breaking Strain- 6mm 30kN
AISI 304 (A2) or AISI 316 (A4) Stainless Steel
EN959
Order Code Description Price
[BH6-10A2] 6mm Rod Belay Hanger for 10mm bolt. €4,45
[BH6-12A2] 6mm Rod Belay Hanger for 12mm bolt. €4,45
[BH6-10A4] 6mm Rod Belay Hanger for 10mm bolt. €4,67
[BH6-12A4] 6mm Rod Belay Hanger for 12mm bolt. €4,67

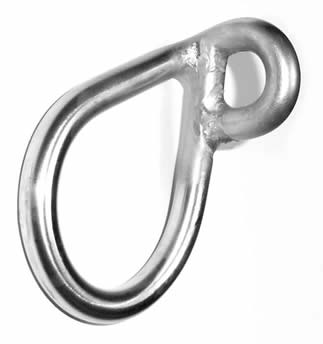

8mm Rod Belay Hanger for 10/12/16mm bolt
The more robust variant of above, made from 8mm rod for use at belays and lower-offs with 10, 12mm or 16mm bolts.
Immensly strong rod construction prevents damage to karabiners and slings and allows direct threading of the rope for abseiling and lowering off.
Double welded for safety.
Eye takes multiple karabiners and allows for doubled threading of the rope.
Nominal eye diameter 40mm
Breaking Strain min.45kN
AISI 304 (A2) or AISI 316 (A4) Stainless Steel
EN9519
Order Code Description Price
[BH8-10A2] 8mm Rod Belay Hanger for 10mm bolt. €5,50
[BH8-12A2] 8mm Rod Belay Hanger for 12mm bolt. €5,50
[BH8-16A2] 8mm Rod Belay Hanger for 16mm bolt. €6,00
[BH8-10A4] 8mm Rod Belay Hanger for 10mm bolt. €5,78
[BH8-12A4] 8mm Rod Belay Hanger for 12mm bolt. €5,78
[BH8-16A4] 8mm Rod Belay Hanger for 16mm bolt. €6,30
