Glue Quantities.
We can naturally give the theoretical requirements for a bolt/hole combination but additional to this there is the wastage priming the mixer nozzles, nozzle change, the excess per hole, the glue on your hands, clothes, hair etc, and other wastages. For example;- our standard 6mm x 80mm bolt theoretically needs 5,7 ml of glue, in practice we get around 25 to 30 bolts per 380ml cartridge which works out at 12 to 15ml per bolt, mainly depending on whether we used a complete tube in one session or had to change nozzles.
As a rough guide:-
6 x 80mm bolt - 25 per cartridge
6 x 100 23
6 x 150 20
8 x 80 20
8x 100 17
8x 150 15
Visit Bolting Information for much more detailed information on gluing and how to go about it.
Polyester Glue
We supply our adhesive in 380ml coaxial tubes which require a special larger frame gun as is common in the construction industry. Naturally we stock these at a very competetive price. The smaller cartridges to fit a normal gun are not popular with experienced bolters as once opened the contents must be used up, the larger tubes can be re-capped and stored.
Gel time @ 20°C- 7 mins.
Min. cure time @ 20°C- 1,5hrs
Tubes are supplied with TWO mixer nozzles each.
Order Code Description Price
[BPG 380] 380ml Polyester Adhesive (per tube) €14,60
******€11.99 per tube when you buy a box of 10!******
Epoxyacrylate Glue
Not to be confused with "real" epoxy this glue system has some advantages over polyester, in particular better water resistance as well as higher strength. For more information on glues see Bolting Information
Order Code Description Price
[BEG 400] 400ml Epoxyacrylate Adhesive (per tube) €15,60
******€13,50 per tube when you buy a box of 10!******
Epoxy available to order for gluing other bolt types.
Nozzles
Extra mixer nozzles for the above. Supplied singly or in packs of 10.
Order Code Description Price
[MN380] Mixer Nozzle for 380/400ml cartridge €1,30ea
Pack of 10 for €11,00

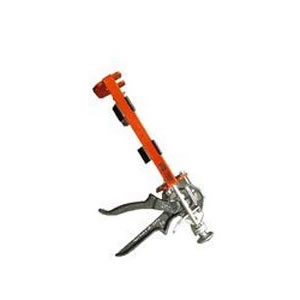

Glue-gun
A robust, good quality gun at a reasonable price.
Suits all of this type of coaxial 380mm tube resins.
Order Code Description Price
[IG380] 380ml Injection Gun €25.00
To achieve the maximum holding power of a bolt it is essential to clean the hole of dust. Cleaning brushes and blower can be found at Accesories
For tests of various cleaning standards visit Strength and Tests
